CPB-H404 Video Receiver Casview Factory
Home > Products > Video Balun > HD Passive Video Balun

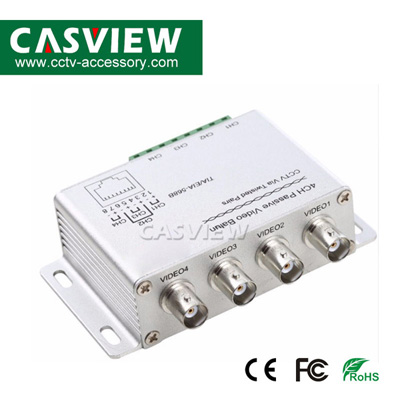

  • CPB-H404 Video Receiver Casview Factory

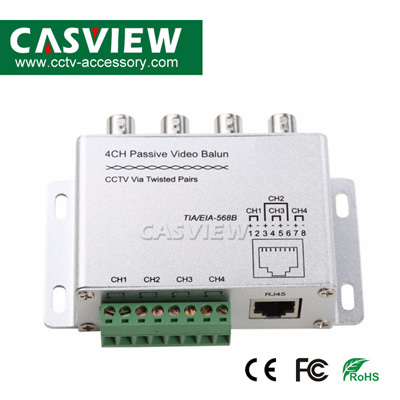

  • CPB-H404 Video Receiver Casview Factory

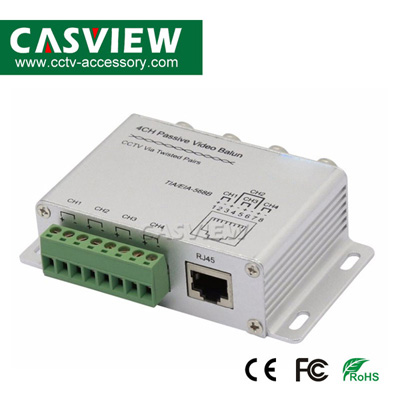

  • CPB-H404 Video Receiver Casview Factory
Product name : CPB-H404 Video Receiver Casview Factory
Product Parameter :
>>more
◆ Compatible with all HD-CVI/ HD-TVI/ HD-AHD & CVBS
◆ NTSC PAL and SECAM video formats
◆ No power required
◆ Built in transient suppression protection
◆ 60dB crosstalk and noise immunity
Product Description

www.casview.com Feature:

1. Compatible with all HD-CVI/ HD-TVI/ HD-AHD & CVBS
2. Up to 450m for 720P CVI Cameras
3. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
4. Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
5. Up to 350m for 720P/ 960P AHD Cameras
6. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
7. NTSC, PAL and SECAM video formats
8. No power required
9. 60dB crosstalk and noise immunity
10. Compact size and easy installation
11. Built in transient suppression protection
12. innovative combinable design




Specification:

 Model

CPB-H404

 Balun Type

Passive

 Video transmitting distance

Up to 450m for 720P CVI Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
Up to 350m for 720P/ 960P AHD Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras

 Video Formats

NTSC, PAL, SECAM

 Crosstalk & noise immunity

60dB

 Surge protection

4KV, ESD:8KV

 Frequency Response

DC to 60Mhz

 Wire Type

Unshielded Cat-5 or above twisted pair wire

 Impedance

BNC:75 ohms; Terminal: 100 ohms

 Working temperature

-10°C to +70°C

 Storage Temperature

-10°C to +70°C

 Humidity

0 to 95%

 Material

ABS engineering plastic
