CAB-HD120TR
Home > Products > Video Balun >
  • CAB-HD120TR
  • CAB-HD120TR
  • CAB-HD120TR

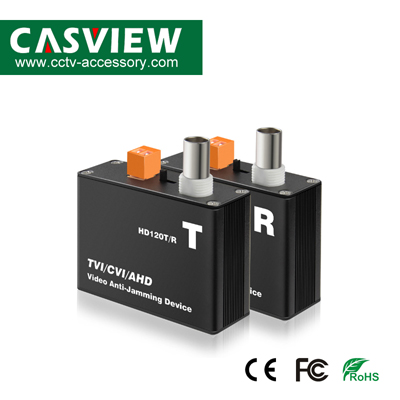

Product name : CAB-HD120TR
Product Parameter :
HD-CVI/ TVI/ AHD & CVBS
1080P/ 3MP/ 4MP/ 5MP/ 8MP
Built in solid state TVS for surge protection
Product Description

Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable  for Neat installtion
6. ABS engineering plastic housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6


Specification:

Model CAB-HD120TR
Balun Type Passive
Video transmitting distance HDCVI / CVBS: Up to 600m for 720P
AHD: Up to 300m for 960H/1080P
HDTVI: Up to 300m for 720P/1080P

Video Formats NTSC, PAL, SECAM
Crosstalk & noise immunity 60dB
Transient supression protection Yes
Frequency Response DC to 8MHz
Wire Type Unshielded Cat-5 or above twisted pair wire
Impedance BNC:75 ohms; Terminal: 100 ohms
Material ABS engineering plastic
Working Temperature -20°C~+65°C
Working Humidity -10%~85% RH
