www.casview.com Feature:
1. Compatible with all HD-CVI/ HD-TVI/ HD-AHD & CVBS 2. Up to 450m for 720P CVI Cameras 3. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras 4. Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras 5. Up to 350m for 720P/ 960P AHD Cameras 6. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras 7. NTSC, PAL and SECAM video formats 8. No power required 9. 60dB crosstalk and noise immunity 10. Compact size and easy installation 11. Built in transient suppression protection 12. innovative combinable design
Specification:

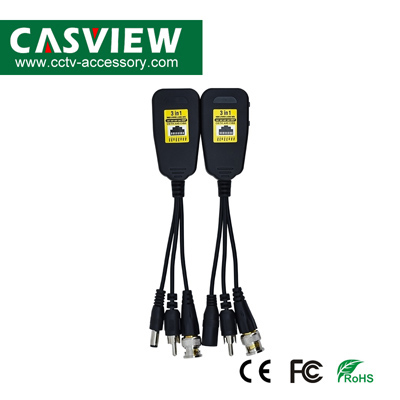

CPB-H308PA
Passive
Up to 450m for 720P CVI Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras Up to 350m for 720P/ 960P AHD Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
NTSC, PAL, SECAM
60dB
4KV, ESD:8KV
DC to 60Mhz
Unshielded Cat-5 or above twisted pair wire
BNC:75 ohms; Terminal: 100 ohms
-10°C to +70°C
0 to 95%
ABS engineering plastic
