www.casview.com Features: 1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS 2. Compatible with 720P/960P/1080P/3MP/4MP/5MP 3. Built in solid state TVS (Transient voltage suppressor) for surge protection 4. No power required 5. stackable for Neat installtion 6. ABS engineering plastic housing 7. 60dB crosstalk and noise immunity 8. Lightning protection design grade:III 9. Wave Filter design, Anti-statit design 10. Real-time transmission over UTP Cat5e/6

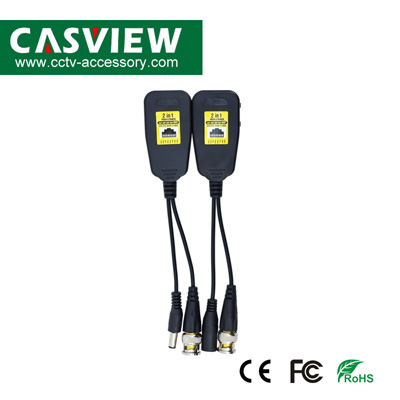

CPB-H308P
Passive
Up to 450m for 720P CVI Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras Up to 350m for 720P/ 960P AHD Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
NTSC, PAL, SECAM
60dB
4KV, ESD:8KV
DC to 60Mhz
Unshielded Cat-5 or above twisted pair wire
BNC:75 ohms; Terminal: 100 ohms
-10°C to +70°C
0 to 95%
ABS engineering plastic
