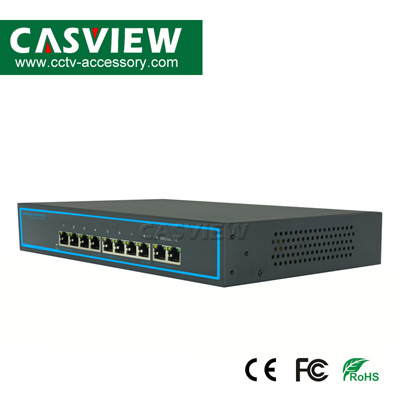

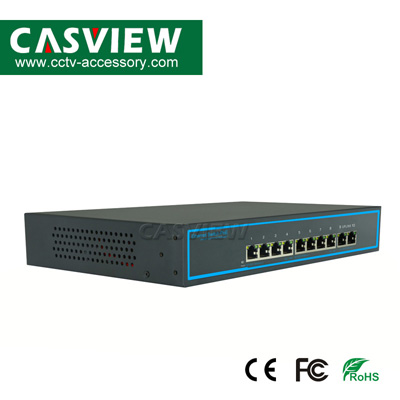

Product name : CPE-4308B
Product Parameter :
>>more
10 Ports 10/100Mbps Switch
8*10/100Mbps Poe Ports
2*10/100Mbps Uplink Port Poe Data & Power
Transmission Distance 100meters
Poe Standard: IEEE 802.3af/at
Product Description


Feature:

◆ 10x 10/100Mbps auto-sensing RJ45 ports,
    8x 10/100Mbps PoE ports, 2x 10/100Mbps uplink port;
◆ Supports port auto-flip (Auto MDI/ MDIX);
◆ Maximum power of single PoE port: 15.4W/30W;
◆ Adopts store-and-forward architecture;
◆ IEEE 802.3af/at power on up to 8 ports;
◆ With anti-theft lock;
◆ Protection: Excellent anti thunder, anti static and anti-Interference;
◆ Built in power supply, compact and quiet design,suitable for desktop or wall





Specification


 Model CPE-4308B
 Power adapter voltage 48-57V DC
 POE Ethernet port 1-8 port: 10/100Mbps
 Ethernet port 2* Uplink port: 10/100Mbps
 Transmission Distance 1-8 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard network cable
 Network standard IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
 Switching capacity 5.6Gbps
 Packet Forwarding rate 4.166Mpps
 MAC table 2K
 POE Standard IEEE 802.3AF/AT
 POE power supply type End-span (1/2+, 36-)
 POE power consumption af=15.4W (each port), at=30W (each port)
 Working temperature 0℃~55℃
 Relative humidity 20~95%
 Storage temperature -20℃~70℃
 MTBF >30000h
